แหวนฟอร์จเหล็กสั่งทำพิเศษ

แหวนฟอร์จเหล็กสั่งทำพิเศษ

  • ชนิดการชำระเงิน: L/C,T/T
  • Incoterm: EXW,CFR,CIF,FOB
  • สั่งขั้นต่ำ: 1 Ton
  • การเดินทาง: Ocean,Land,Air,Express
รับราคาล่าสุด
    PRODUCT ATTRIBUTES
    Overview
    คุณสมบัติของผลิตภัณฑ์

    แบรนด์ชีจิ้ง

    Overview
    ความสามารถในการจัดหาและข้อมูลเพิ่มเติม

    การเดินทางOcean,Land,Air,Express

    ชนิดการชำระเงินL/C,T/T

    IncotermEXW,CFR,CIF,FOB

    บรรจุภัณฑ์ และการจัดส่ง
    หน่วยงาน ที่ขาย: Ton
    คำอธิบายผลิตภัณฑ์

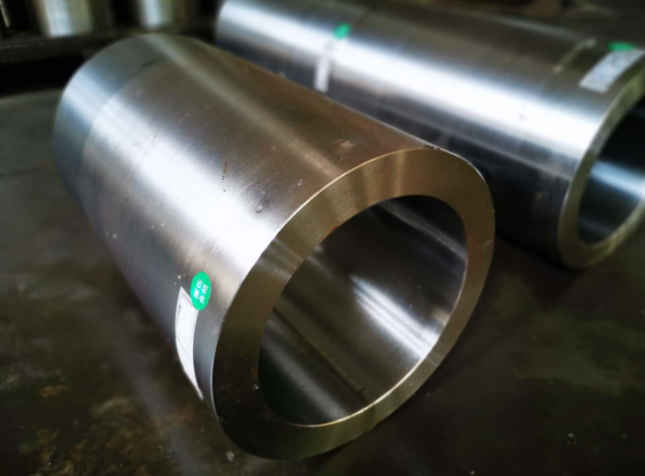

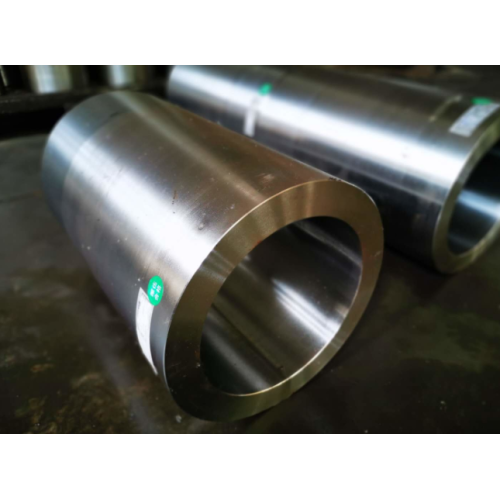

    แหวนปลอมแปลงเหล็กสั่งทำพิเศษ / แหวนกลิ้งปลอม ASTM, DIN, JIS Standard

    ScreenShot_2025-10-21_095032_764

    ข้อมูลจำเพาะของแหวนหลอมเหล็ก

    Type Ring forging
    Application Automotive, Truck,Tractor, Gear, Metal,Building, Railway,Steering,Vehicle ,Wheel,Transmission,Suspension,Brake,Axle,Chassi,Container,Machine,Engine
    Processing Forging and Machining
    Material Steel, stainless steel,alloy steel,carbon steel
    Weight Ranges 0.5kg-100kg
    Tolernace ±0.1mm, Controlled by GB 12362 Precision
    Design Support Pro-E, UG,SolidWorks,AutoCad, PDF
    Quality Control Material, Dimension,Performance,inside defects,Balance test
    Standard ASTM,DIN,JIS,ISO,GB standards

    รายการใบรับรอง:

    Certificates list
    ISO9001:2008 ISO14001:2004 PED Certificate
    ABS Certficate BV Certficate DNV Certificate
    RINA  Certficate GL  Certficate LR  Certficate
    CCS  Certficate NK  Certficate KR  Certficate
    API-6A  Certficate API-17D  Certficate CNAS  Certficate


    อุปกรณ์การผลิตหลัก

    Name&Description

    Capacity

    Quantity

    3600Thydraulic press

    Max. single forging in 18T

    1

    2000T hydraulic press

    Max. single forging in 9T

    2

    800 hydraulic press

    Max. single forging in 5T

    1

    6T electrical hydraulic hammer

    Max.single forging in 5T

    1

    3T electrical hydraulic hammer

    Max.single forging in3T

    1

    Air hammer

    Max.single forging from250kg to 1000kg

    7

    Forging operation machine

    Max.singe forging from20T-5T

    7

    Heat treatment Furance

    Max.8000*5000*1500mm

    11

    CNC driling machine

    Max.5000mm

    2

    Vertical lathe

    From 1600 to 5000mm

    60

    Horizontal lathe

    Max.5000mm

    70

    Band sawing machine

    260-1300mm

    36

    รายการเครื่องทดสอบหลัก:



    Item

     Name



    Model



    Precision



    Quantity



    Calibration cycle



    Remarks

    1



    UT fault detector

    CUD2080



    4



    1year



    2



    UT fault detector

    PXUT-U1



    1



    1year



    3



    UT fault detector

    PXUT-U350+



    1

    1year



    4



    Yoke flaw detector

    DA-400S



    1

    1year



    5



    UT fault detector

    USM 35X



    2

    1year



    6



    UT fault detector

    USN 60



    1

    1year



    7



    Reading directly spectrographer

    SPECTROTEST

    TXCO2

    B Class

    3

    1year



    8

    Reading directly spectrographer

    GS 1000

    A Class

    1

    1year



    9



    HB tester

    HB-3000B

    ±2.5%

    1

    1year



    10



    Leeb hardness tester

    TH140

    ±12HLD

    4

    1year



    11



    Leeb hardness tester

    EQUOTIP3

    ±12HLD

    1

    1year



    12



    Digisplay Rockwell hardness tester

    HRS-150

    ±1.5HRC

    1

    1year



    13



    Portable HB tester



    ±3.0%

    1

    1year



    14

    Automatic end quenching test machine

    WDZ-02



    1





    15



    Metallurgical Micaroscopy

    XJP-6A



    1

    1year



    16



    Chemical analysis equipment





    1Set

    1year
